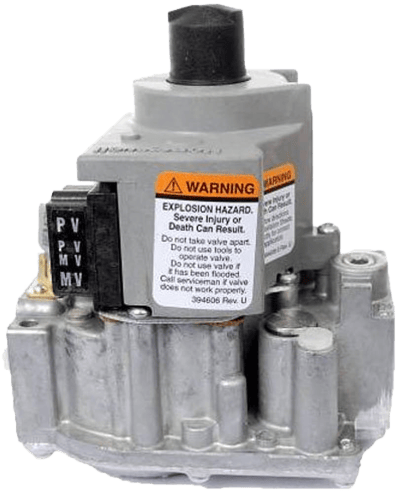

VR8345H4555/U Dual Direct Ignition/Intermittent Pilot

Part Number: VR8345H4555/U Brand: Resideo Technologies Inc

Dual Direct Ignition/Intermittent Pilot

Price
Request a Quote
Stock
In Stock
Request Information
Does not ship to OH, United States

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities from 20 to 200 cfh - VR8245M or 30 to 415 cfh - VR8345M.
Features
  • Control Includes Manual Valve, Two Automatic Operators, Pressure Regulator, Pilot Adjustment, Pilot Plug and Ignition Adapter.
  • Replaces Many IP, HSI, or DSI Gas Control.
  • For Use with Natural or Manufactured Gas or LP Gas.
  • Includes Converter Kit to Adapt from Natural to LP Gas.
  • Compact Size.
  • All Adjustments and Wiring Connections Accessible from Top of Control.
  • Four-inch Swing Radius Allows Easy Rotation Into Position Inside the Tightest Furnace Vestibules.
  • Clearly Marked, Keyed Terminal Block Allows Quick Attachment of Wires and IP/DSI/HSI Jumper.
  • Internal Inlet Screen Blocks Contaminants in Gas Line from Entering Valve.

Specifications

Brand

Dimensions

  • 5-3/8 in. high x 4-1/16 in. wide x 2-11/16 in. deep
  • 135 mm high x 104 mm wide x 69 mm deep

Includes

  • Natural to LP Conversion Kit; Two 3/4 x 1/2 in. reducer bushings

Mounting

  • 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.

Frequency

  • 60 Hz

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized.

Approvals, Canadian Standards Association

  • CSA International: 112395

Tradeline Value

  • Super Tradeline

Electrical Connections

  • 1/4 in. quick-connect male terminals

Voltage

  • 24 Vac

Operating Temperature Range

  • 0 °F to 175 °F
  • -18 °C to +79 °C

Body Pattern

  • Straight-through

Opening Characteristics

  • Slow Opening

Pressure Ratings

  • 1/2 psi
  • 3.5 kPa

Inlet/Outlet Size

  • 3/4 in. x 3/4 in.

Pilot Gas Outlet

  • Natural

Pressure Tapping

  • 1/8 in. NPT with plug

Type of Fuel

  • Natural

Capacity

  • At 1 in. wc p.d. - 300,000 BTUh: 30,000 BTUh minimum

Pressure Regulator Setpoint

  • 3.5 in. wc
  • 0.87 kPa

Ignition Type

  • Direct Ignition; Intermittent Pilot

  • Single Stage
