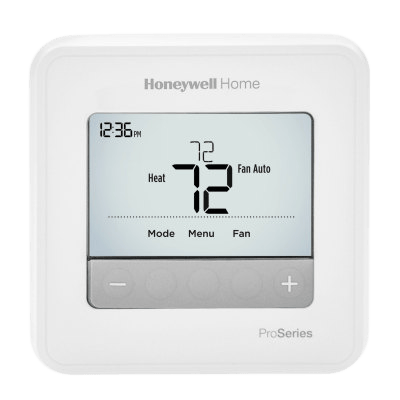

TH4110U2005/U T4 Pro Programmable Thermostat with Stages up to 1 Heat/1 Cool Heat Pumps or 1 Heat/1 Cool Conventional Systems
Part Number: TH4110U2005/U Brand: Resideo Technologies IncT4 Pro Programmable Thermostat with Stages up to 1 Heat/1 Cool Heat Pumps or 1 Heat/1 Cool Conventional Systems
Price
Request a Quote
Stock
In Stock
Does not ship to OH, United States
The T Series programmable thermostat streamlines everything from product selection and installation to customer service and support.
With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers alike.
Features- TH4210U2002 2H/1C Heat Pump and 1H/1C Conventional
- TH4110U2005 1H/1C Heat Pump and 1H/1C Conventional
- 7-day, 5-2, 5-1-1 or Non-programmable
- Uses the UWP Mounting System that’s Standard Across All T Series Thermostats
- Easy Upsell to a Connected Lyric T6 Pro Wi-Fi when Your Customer is Ready for Wi-Fi: C-wire Required
- Simple Push-button Functionality
- Filter Change Reminders
- 5-year Warranty
Specifications
Dimensions
- 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
- 103.6 mm long x 103.6 mm wide x 28 mm deep
Includes
- Thermostat, UWP mounting system, Installation (J-box) adaptor,
Mounting
- UWP Mounting System
Electrical Ratings
- 20 to 30 Vac
Frequency
- 50 Hz; 60 Hz
Stages
- Up to 1 Heat/1 Cool Heat Pumps; Up to 1 Heat/1 Cool Conventional Systems
Electrical Connections
- Honeywell UWP Mounting System
Operating Humidity Range
- 5 to 90% RH, non-condensing
Supply Voltage
- 20 to 30 Vac
Switch Positions - System
- HEAT-OFF-COOL-AUTO.
Switch Positions - Fan
- AUTO-ON
Operating Temperature Range
- 37 °F to 102 °F
- 2.7 °C to 39 °C
Shipping and Storage Temperature Range
- - 20 °F to 120 °F
- - 28.9 °C to 48.9 °C
LEDs
- LED Back Light
Power Method
- Battery or Hardwired
Ambient Temperature Range
- 0 °C to 50 °C
- 32 °F to 120 °F
Color
- White
Display
- Medium display, Soft Key Controls
Accuracy
- 1 °F
- 0.5 °C
Differential Temperature
- ± 1 °F
- ± 0.5 °C
Switch Type
- Relay
Programmability
- 7 day, 5-1-1 day, 5-2 day, or Non-programmable
Display Size
- 3.93 sq.in.
Temperature Control Mode Selections
- Ambient Air Temperature
Changeover
- Auto or Manual
Cool Current
- 0.02 A to 1.0 A running
Heat Current
- 0.02-1.0 A
Fan Current
- 0.02-.05 A
- Standard Efficient Gas Forced Air
- High Efficacy Gas Forced Air
- Oil Forced Air
- Electric Forced Air
- Hot water Fan Coil
- Geothermal Heat Pump
- Air to Air Heat
Documentation
Brochure
- English Sales/Promotional Materials-Connected and Non-Connected Thermostat Counter Mat pdf 1.2 MB
- English Sales/Promotional Materials-Introducing The New Standard for Simple - T Series Sell Sheet pdf 1.3 MB
- English Sales/Promotional Materials-The Honeywell Home T Series Brochure pdf 3.5 MB
- English Sales/Promotional Materials-The Honeywell Home T Series Brochure pdf 3.5 MB
- English Sales/Promotional Materials-The Honeywell T Series - Tri-fold Brochure pdf 8.5 MB
- French Sales/Promotional Materials-Programmable and Non-Programmable Thermostat Selection Guide pdf 533 KB
- French Sales/Promotional Materials-Sell Sheet for the T Series Thermostats pdf 191 KB
- French Sales/Promotional Materials-The Honeywell T Series - Tri-fold Brochure pdf 7.6 MB
Datasheet
Manual
- English Installation Materials-Addendum for T4 and T1 PRO Wiring Diagrams pdf 1.1 MB
- English, French, and Spanish Installation Materials-Installation Instructions for T4 Pro Programmable Thermostat pdf 4.0 MB
- English, French, and Spanish Operator/Owner Materials-T4 Pro Programmable Thermostat Product Information Sheet pdf 3.5 MB
- English, French, and Spanish Operator/Owner Materials-User Guide for T4 Pro Programmable Thermostat TH4110U2005, TH4210U2002 pdf 9.4 MB
- Installation Materials-Installation Instructions for T Series pdf 1.3 MB
