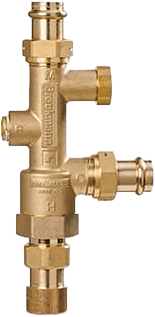

AMX101-US-1LF/U AMX Series DirectConnect
Part Number: AMX101-US-1LF/U Brand: Resideo Technologies IncAMX Series DirectConnect
Price
Request a Quote
Stock
In Stock
Does not ship to OH, United States
AMX series DirectConnect™ reduces water heater installation time as the cold and hot port position eliminates the need for typical elbows and tees.
Designed for safety to prevent scalding, it also increases user comfort.
Features- Designed to be Directly Installed on Water Heater Hot Outlet Port
- Offers Constant Water Temperature Under Changing Operating Conditions
- Temperature is Adjustable Using 3/16 Allen Wrench and if Cold Water Supply is Interrupted, Flow Reduction Occurs in Seconds
- Features Brass/Stainless Construction and Teflon Coated of Wear Surfaces
- Heat Trapping not Required and Recirculation Portion Option Allows for Fast Response
- Lead Free Products Have Products Numbers End in LF
Specifications
Brand
Comments
- Low lead Content <.25% by weighted average
Maximum Safe Operating Pressure
- 150 psi
- 1034 kPa
Includes
- Check valves on hot and cold ports
Approvals, Canadian Standards Association
- CSA Certified
Approvals, Others
- NSF/ANSI; IAPMO
Approvals, ASSE
- 1017
Connection Type
- Union Sweat, 3/4 in. Bottom
Minimum Flow Rate
- 0.5 gpm
Pipe Size
- 3/4 in.
- DN20
Fluid Temperature
- Cold Inlet: 4 °C to 27 °C: Hot Inlet: 49 °C to 82 °C; Mixed Outlet: 21 °C to 63 °C
- Cold Inlet: 39 °F to 80 °F; Hot Inlet: 120 °F to 180 °F; Mixed Outlet: 70 °F to 145 °F
Capacity
- 4 Cv
Valve Type
- Mixing Valves
- Heat Pump Systems
- Domestic Water
- Nursing Homes
- Public Facilities
- Automatic Faucets
- Radiant Floor Heating
- Space Heating
- Combo Systems
- Solar Hot Water
- Greenhouses
- Industrial Applications
- Photo Processing
