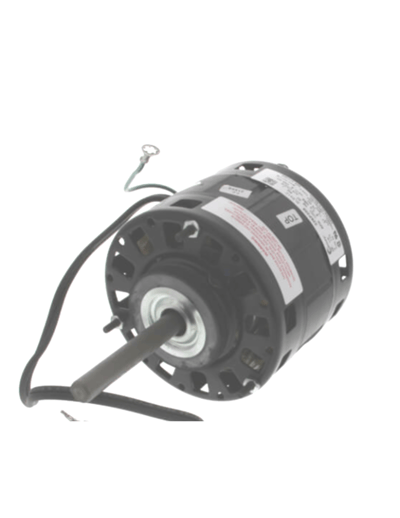

1/6 HP Fan & Blower Motor, 1050 RPM, 115 Volts, 42 Frame,
Price
Request a Quote
Stock
Out of Stock
1/6 HP Fan & Blower Motor, 1050 RPM, 115 Volts, 42 Frame,
Specifications
Brand
Specifications
- Output HP 1/6 Hp Output KW 0.13 kW Frequency 60 Hz Voltage 115 V Current 5.5 A Speed 1050 rpm Service Factor 1 Phase 1 Duty Air Over Insulation Class B Frame 42Y Enclosure Open Air Over Thermal Protection Automatic Ambient Temperature 40 °C UL Recognized CSA Y CE N Number of Speeds 1 Technical Specifications Electrical Type Shaded Pole Starting Method Across The Line Poles 6 Rotation Counterclockwise Lead End Mounting Resilient Rings Motor Orientation Horizontal Drive End Bearing Sleeve Opp Drive End Bearing Sleeve Frame Material N/A Shaft Type Flat Overall Length 7.50 in Shaft Diameter 0.500 in Shaft Extension 3.7 in Connection Drawing 261B865F01 Outline Drawing 11674-00
