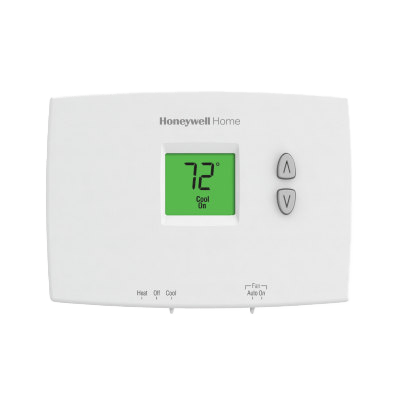

Images are representations only.
TH1100DH1004/U PRO 1000 Horizontal Non-programmable Thermostats
Part Number: TH1100DH1004/U Brand: Resideo Technologies IncPRO 1000 Horizontal Non-programmable Thermostats
Price
Request a Quote
Stock
In Stock
Does not ship to OH, United States
PRO 1000 Horizontal Non-programmable Thermostat.
Specifications
Dimensions
- 3-7/16 in. High x 4-10/16 in. Wide x 1-3/16 in. Deep
- 87mm High x 119mm Wide x 30mm Deep
Includes
- 6 in. (152 mm) cover ring and switch position labels
Mounting
- Horizontal
Electrical Ratings
- 20 to 30 Vac or 750 mV
Frequency
- 50 Hz; 60 Hz
Stages
- 1 Heat
Operating Humidity Range
- 5 to 90% RH, non-condensing
Switch Positions - System
- HEAT-OFF-COOL
Power Method
- Dual Powered: Battery or Hardwire
Color
- Premier White®
Terminal Designations
- R, C, W
Display Size
- 1.32 sq in.
Changeover
- Manual
Setting Temperature Range
- Selectable Heat: 40 °F to 90 °F or 35 °F to 90 °F
- Selectable Heat 4.5 °C to 32 °C or 1.5 °C to 32 °C
Cycles per Hour
- Heating 2-6 CPH
Heat Current
- 0.02 A to 1.0 A running
Comments
- Adjustable Temperature Scale: Standard selection of 40 °F to 90 °F or Garage selection of 35 °F to 90 °F
- Heat Only
Documentation
Manual
- English, French, and Spanish Installation Materials-Installation Guide for the PRO TH1000E1, TH1000DH, TH2000DH Series Thermostats pdf 2.2 MB
- English, French, and Spanish Installation Materials-Product Information Sheet for PRO 1000 Series Non-ProgrammableThermostat pdf 563 KB
- English, French, and Spanish Operator/Owner Materials-Operating Manual for PRO 1000 Series Non-Programmable Thermostat pdf 1.3 MB
