Images are representations only.

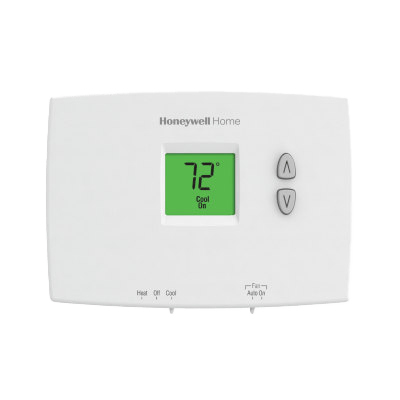

TH1110DH1003/U PRO 1000 Horizontal Non-programmable Thermostats
Part Number: TH1110DH1003/U Brand: Resideo Technologies IncPRO 1000 Horizontal Non-programmable Thermostats
Price
Request a Quote
Stock
In Stock
Does not ship to OH, United States
PRO 1000 Horizontal Non-programmable Thermostat.
Specifications
Dimensions
- 3-7/16 in. High x 4-10/16 in. Wide x 1-3/16 in. Deep
- 87 mm High x 119 mm Wide x 30 mm Deep
Mounting
- Horizontal
Electrical Ratings
- 20 to 30 Vac or 750 mV
Frequency
- 50 Hz; 60 Hz
Stages
- 1 Heat/1 Cool
Operating Humidity Range
- 5 to 90 % RH, Non-Condensing
Switch Positions - System
- HEAT-OFF-COOL
Switch Positions - Fan
- AUTO-ON
Power Method
- Dual Powered: Battery or Hardwire
Color
- Premier White®
Terminal Designations
- R, RC, C, W, Y, G, O, B
Display Size
- 1.32 sq in.
Changeover
- Manual
Setting Temperature Range
- Heat: 40° to 90° F; Cool: 50° to 99° F
- Heat: 4.5° to 32° C; Cool: 10° to 37° C
Cycles per Hour
- Heating 2 - 6 CPH; Cooling 2 -6 CPH
Cool Current
- 0.02 A to 1.0 A running
Heat Current
- 0.02 A to 1.0 A running
- 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
Documentation
Brochure
Manual
- English, French, and Spanish Installation Materials-Installation Guide for the PRO TH1000E1, TH1000DH, TH2000DH Series Thermostats pdf 2.2 MB
- English, French, and Spanish Installation Materials-Product Information Sheet for PRO 1000 Series Non-ProgrammableThermostat pdf 563 KB
- English, French, and Spanish Operator/Owner Materials-Operating Manual for PRO 1000 Series Non-Programmable Thermostat pdf 1.3 MB
