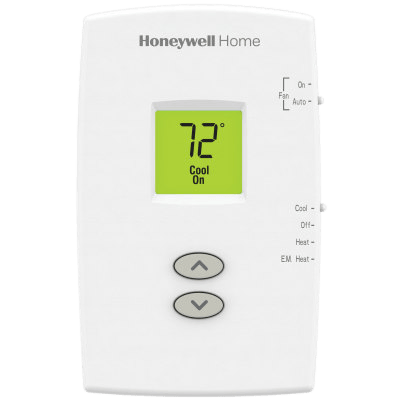

TH2110DV1008/U PRO 2000 Vertical Non-programmable Thermostats

Part Number: TH2110DV1008/U Brand: Resideo Technologies Inc

PRO 2000 Vertical Non-programmable Thermostats

Price
Request a Quote
Stock
In Stock
Request Information
Does not ship to OH, United States

The PRO programmable family of thermostats offers a basic thermostat with the benefits of energy savings.

The PRO features an easy-to-read display and 5-2 day programming.
Features
  • Weekday/Weekend Programming - 5-2: Weekdays, Weekend, Programming
  • Backlit Digital Display - Both Current and Set Temperatures are Easy to Read in Various Lighting Conditions
  • Precise Comfort Control [±1 F (± 0.5 C)] - Maintains Consistent Comfort to the Highest Level of Accuracy
  • Basic Operation - Easy-to-Use Slide Switches Allow You to Select the Heat or Cool Mode, and Operate the Fan
  • The Pro 4000 has Built In Instructions - Simple, Pull Out Instruction Manual
  • Adaptive Intelligent Recovery™ - Ensures Programmed Temperature is Reached by Programmed Time

Specifications

Brand

Dimensions

  • 120 mm high x 74 mm wide x 28 mm deep
  • 4-11/16 in. High X 2-7/8 in. Wide X 1-1/8 in. Deep

Mounting

  • Vertical

Electrical Ratings

  • 20 to 30 Vac or 750 mV

Frequency

  • 50 Hz; 60 Hz
  • 50 Hz,60 Hz

Stages

  • 1 Heat/1 Cool

Operating Humidity Range

  • 5 to 90% RH, non-condensing

Switch Positions - System

  • HEAT-OFF-COOL

Switch Positions - Fan

  • AUTO-ON

Power Method

  • Dual Powered: Battery or Hardwire

Color

  • Premier White®

Programmability

  • 5-2 Day Program

Terminal Designations

  • R, RC, C, W, Y, G, O, B

Display Size

  • 1.73 sq in.

Changeover

  • Manual

Setting Temperature Range

  • Heat: 40 °F to 90 °F; Cool: 50 °F to 99 °F
  • Heat: 4.5 °C to 32 °C; Cool: 10 °C to 37 °C

Cycles per Hour

  • Heating 2 - 6 CPH; Cooling 2 -6 CPH

Cool Current

  • 0.02 A to 1.0 A running

Heat Current

  • 0.02 A to 1.0 A running

  • Heat/Cool or Heat Pump without Auxiliary Heat
