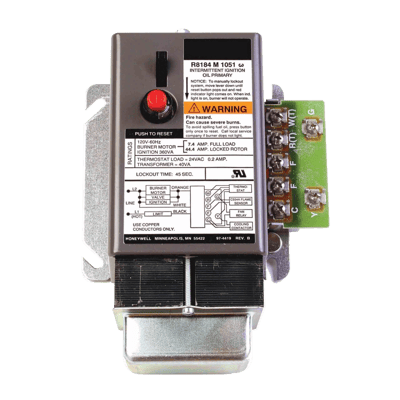

R8184M1051/U Series 80 Protectorelay® Oil Burner Control with Transformer to Provide Power for Cooling Controls

Part Number: R8184M1051/U Brand: Resideo Technologies Inc

Series 80 Protectorelay® Oil Burner Control with Transformer to Provide Power for Cooling Controls

Price
Request a Quote
Stock
In Stock
Request Information
Does not ship to OH, United States

Operates the oil burner and oil valve, if desired, in response to a call for heat from a low voltage control circuit.
Features
  • Intermittent Ignition is on While the Burner is On.
  • Solid State Flame Sensing Circuit.
  • External Button to Manually Reset Safety Switch After Lockout.
  • Enclosed Safety Switch Must be Manually Reset After Safety Shutdown.
  • R8184M Includes 40 VA Transformer and Y and G Terminals for Connection of Cooling Equipment.
  • Mounts on Standard 4" x 4" Junction Box.
  • C554A Cadmium Sulfide Flame Detector and a 24 Vac Thermostat Required.

Specifications

Brand

Dimensions

  • 4-3/8 in. high x 4-1/8 in. wide x 2-1/2 in. deep
  • 111 mm high x 104 mm wide x 64 mm deep

Temperature Range

  • -40 °F to +130 °F
  • -40 °C to +54 °C

Mounting

  • Mounts on standard 4" x 4" junction box

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized; File no. MP268, guide no. MCCZ2

Tradeline Value

  • Tradeline

Ignition Type

  • Intermittent

Timing, Safety Switch

  • 45 sec.

Electrical Ratings, Contacts

  • Full Load
  • 7.4 A @ 120 Vac; 3.7 a @ 240 Vac
