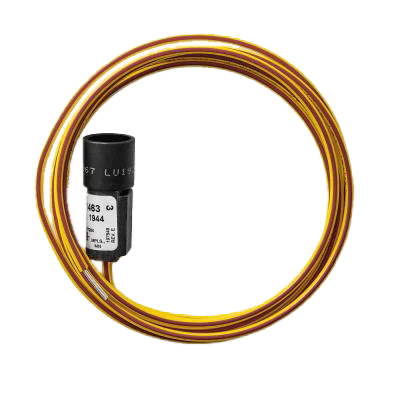

C554A1463/U Cadmium-Sulfide Flame Detector with 60 in. Leads, Type “R” Bracket and Higher Sensitivity Cad Cell

Part Number: C554A1463/U Brand: Resideo Technologies Inc

Cadmium-Sulfide Flame Detector with 60 in. Leads, Type “R” Bracket and Higher Sensitivity Cad Cell

Price
Request a Quote
Stock
In Stock
Request Information
Does not ship to OH, United States

Photoconductive flame sensing device for sequencing oil burner systems.
Features
  • On Flame Failure, the Light Sensitive Cadmium Sulfide Cell, in Conjunction with Flame Sensing Circuitry, Causes the Protectorelay® Control to Shutdown the Main Oil Burner.
  • Glass-to-Metal Hermetic Seal in Plug-in Cell Prevents Deterioration by Humidity, Soot or Oil Fumes.
  • Replaceable CAD Cell

Specifications

Brand

Dimensions

  • 1-7/8 in. high x 1 in. long x 1/2 in. wide
  • 47 mm high x 25 mm long x 13 mm wide

Includes

  • A, B, E, J and P mounting brackets and fuel line adaptor

Used With

  • R4166
  • R4184
  • R8182
  • R8184
  • R8185
  • R8404
  • R8991
  • R7997
  • R7184
  • R7284

Mounting

  • Type R bracket

Approvals, Underwriters Laboratories Inc.

  • UL Listed: File no. MP268, Vol. 39, Sec. 1, Guide MCCZ

Approvals, Canadian Standards Association

  • CSA Component Listed: File no. LR95329-1

Tradeline Value

  • Super Tradeline

Electrical Connections

  • Lead wires: NEC Class 1; Includes 2 flag 1/4 in. quick connects

Replacement Parts

  • 120320 Replacement Cad Cell. 7.5 mA minimum sensitivity at 2 ft. candles; 130367 Replacement Cad Cell. 12.0 mA minimum sensitivity at 2 ft. candles.

Power Consumption

  • 12 mA

Ambient Temperature Range

  • 60 °C maximum
  • 140 °F maximum

Lead Length

  • 60 in.
  • 1524 mm

Sensitivity

  • Minimum sensitivity at 2 ft candles
