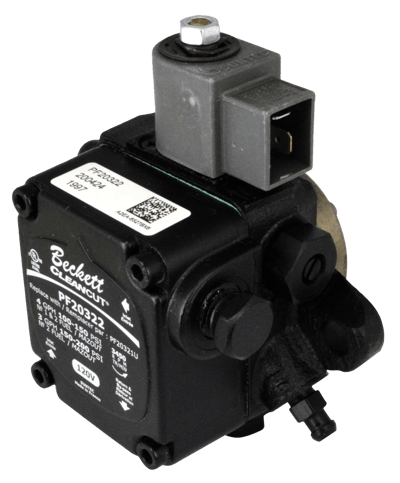

OIL PUMPS
Brand: R.W. Beckett Corporation- Nozzle Pressure: 100 – 200 psi
- Factory Ste Pressure: 100 psi
- Operating Fluids:
- #2 & lighter fuel oils
- Viscosity 1.4 – 12 cSt
- 0 – 25°C / 32 – 77°F in the pump
- Inlet pressure: 10 psi max.
- Return pressure: 10 psi max.
- Suction height:
- One pipe: 8′ max.
- Two pipe: 14′ max.
- Rate speed: 3600 rpm max.
- Breakaway torque: 36 in.-oz. max.
- Voltage:
- 24, 110-120 or 200-240 VAC, 50*/60 Hz (*50 Hz not UL approved)
- 12 VDC
- Power consumption: 9 watts
- Ambient temperature: 46°C / 115°F max.
- Maximum pressure: 200 psi
- Certification: UL, CUL
- Epoxy potted for moisture resistance
- Compatible with most operating controls
- Customizable pre-time and post-time
- Three status lights for system monitoring and diagnostics
- Welded relay protection with redundant motor relays
- Limited reset and limited recycle
- Sleek, modern design
- Technician pump prime mode
- 18 month warranty
- Communication ports for the GeniSys® Contractor Tool
Specifications
Nozzle Pressure
- 100 – 200 psi
Factory Ste Pressure
- 100 psi
Operating Fluids
- #2 & lighter fuel oils
- Viscosity 1.4 – 12 cSt
- 0°C – 25°C / 32°F – 77°F in the pump
Inlet Pressure
- 10 psi max.
Return Pressure
- 10 psi max.
Suction Height
- One pipe: 8′ max.
- Two pipe: 14′ max.
Rate Speed
- 3600 rpm max.
Breakaway Torque
- 36 in.-oz. max.
Voltage
- 24, 110-120 or 200-240 VAC, 50*/60 Hz (*50 Hz not UL approved)
- 12 VDC
Power Consumption
- 9 watts
Ambient Temperature
- 46°C / 115°F max.
Maximum Pressure
- 200 psi
Certification
- UL, CUL
