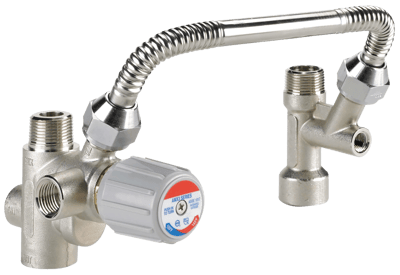

AMX300TLF/U DirectConnect Water Heater Kit Including Valve, Tee, and 8 inch Flex Connector - Low Lead
Part Number: AMX300TLF/U Brand: Resideo Technologies IncDirectConnect Water Heater Kit Including Valve, Tee, and 8 inch Flex Connector - Low Lead
Price
Request a Quote
Stock
In Stock
Does not ship to OH, United States
AMX300 series DirectConnect™ kits from Resideo reduce installation time while providing industry-leading mixing valve technology, which offers excellent temperature stability and control and minimizes scalding risk to building occupants.
Features- Temperature is Adjustable Using Push-Twist-Release Locking Hand Wheel Design and if Cold Water Supply is Interrupted, Flow Reduction Occurs in Seconds
- Kit: AMX300TLF or AMX302TLF, Includes Mixing Valve, Cold Water Tee Fitting and Flexible Stainless Steel Connector. Does not Include Adapters.
- Recirculation Portion Option Offers Fast Delivery of Heated Water to the Furthest Fixtures, Increasing User Comfort with More Available Hot Water
- The Alternate Hot Port Bypasses Hot Water Directly from the Tank to Non-mixed Temperature Applications
- Brass/Stainless Construction with Teflon Coated Wear Surfaces for Extended Surface
- Lead Free Products Have Products Numbers End in LF
Specifications
Brand
Comments
- Low lead Content <.25% by weighted average
Approvals, Canadian Standards Association
- CSA Certified
Approvals, Others
- NSF/ANSI; IAPMO
Operating Temperature Range
- 33 F to 80 F (cold water inlet); 100 F to 212 F (hot water inlet)
- 0.5 C to 27 C (cold water inlet); 38 C to 100 C) (hot water inlet)
Connection Type
- Hot Inlet - Female NPT; Mixed Outlet - Male NPT
Minimum Flow Rate
- 0.25 gpm; Recirculation Port: 1/2 in. NPT; Alternate Hot Port: 1/2 in. NPT
- 0.95 lpm; Recirculation Port: 1/2 in. NPT; Alternate Hot Port: 1/2 in. NPT
Pipe Size
- 3/4 in.
- DN20
Fluid Temperature
- Mixed Water Supply - 38 °C to 63 °C
- Mixed Water Supply - 100 °F to 145 °F
Capacity
- 2.3 Cv
Valve Type
- Mixing Valves
- Domestic Hot Water
