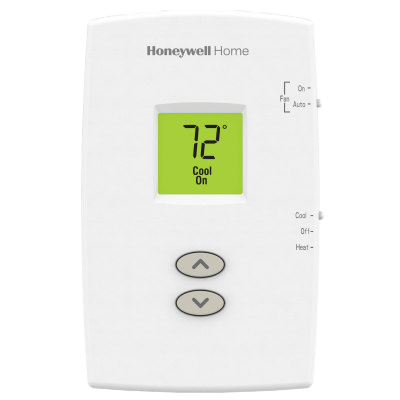

TH1110DV1009/U PRO 1000 Vertical Non-programmable Thermostats
Part Number: TH1110DV1009/U Brand: Resideo Technologies IncPRO 1000 Vertical Non-programmable Thermostats
Price
Request a Quote
Stock
In Stock
Does not ship to OH, United States
PRO 1000 Vertical Non-programmable Thermostat.
Specifications
Dimensions
- 120 mm high x 74 mm wide x 28 mm deep
- 4-11/16 in. High X 2-7/8 in. Wide X 1-1/8 in. Deep
Mounting
- Vertical
Electrical Ratings
- 20 to 30 Vac or 750 mV
Frequency
- 50 Hz; 60 Hz
- 50 Hz,60 Hz
Stages
- 1 Heat/1 Cool
Operating Humidity Range
- 5 to 90% RH, non-condensing
Switch Positions - System
- HEAT-OFF-COOL
Switch Positions - Fan
- AUTO-ON
Power Method
- Dual Powered: Battery or Hardwire
Color
- Premier White®
Terminal Designations
- R, RC, C, W, Y, G, O, B
Display Size
- 1.32 sq in.
Changeover
- Manual
Setting Temperature Range
- Heat: 40 °F to 90 °F; Cool: 50 °F to 99 °F
- Heat: 4.5 °C to 32 °C; Cool: 10 °C to 37 °C
Cycles per Hour
- Heating 2 - 6 CPH; Cooling 2 -6 CPH
Cool Current
- 0.02 A to 1.0 A running
Heat Current
- 0.02 A to 1.0 A running
- 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
Documentation
Manual
- English, French, and Spanish Installation Materials-Installation Guide for PRO TH2000DV/TH1000DV Vertical Series pdf 2.3 MB
- English, French, and Spanish Operator/Owner Materials-Operating Manual for PRO1000, PRO2000 Non-Programmable Vertical Mount pdf 1.1 MB
- English, French, and Spanish Operator/Owner Materials-Product Information for PRO 1000 Series Non- Programmable Thermostat pdf 739 KB
